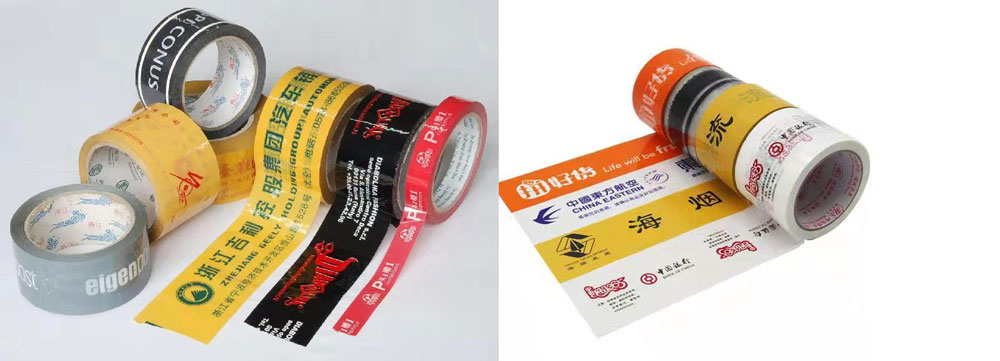

The equipment is mainly suitable for: efficient and convenient production of all kinds of transparent sealing tape, logo tape.
The main functions of the equipment: four-axis automatic exchange, high-efficiency non-stop upper and lower winding shafts, touch screen simple setting and control, aggravated and enlarged precision and stable frame, efficient transmission of the whole machine with synchronous belt. Two-color printing unit.
| High-speed multi-function jumbo roll printing slitting machine configuration list (GL-500Y) | |
| Main accessories configuration | |
| Item | Specification |
| Main drive motor | 4kw |
| Main drive inverter | 4kw |
| PLC | 6ES7 |
| Touch screen | 7 inch |
| Rolling motor | 0.37KW |
| Unwinding air shaft | 74*550MM |
| Rewinding air shaft | 76*550MM |
| Effective width | 500mm |
| Speed | 80m/minute |
| Printing unit | 2 colors |
| Printing surface | Film side (non glue surface) |
| Printing method | Flexographic printing |
| Weight | 3500kg |
| Power | 15kw |
| Rewinding diameter | 260mm |
| Unwinding diameter | 600mm |
| Voltage | 380V 50hz |
| Dimensions | 2850*1500*2000mm |
